项目内容 |
单位 |
设计参数 |
|
规
格
specification |
型号 |
|

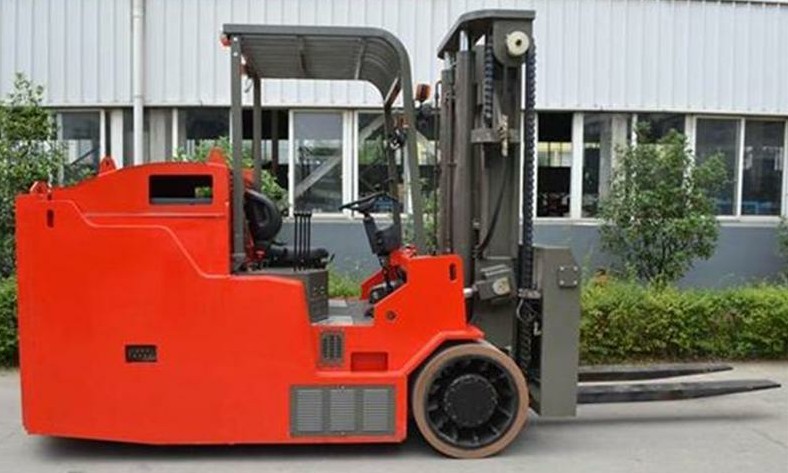

TK4135-30 |
|
额定起重量(load capacity) |
kg |
13500 |
|
载荷中心距C center of distance |
mm |
600 |
|
起升高度H3(lifting height) |
mm |
3000 |
|
自由起升高度H2(free lift height |
mm |
无 |
|
货叉尺寸 fork size |
mm |
1800×200×80 |
|
门架倾角α/βmast tilt angel |
deg |
6/6 |
|
尺
寸
size |
座椅离地高度H6(the distance from sea t to ground. |
mm |
1300 |
|
座椅至护顶架高度H7 the height from seat to over head guard |
mm |
1270 |
|
外形
尺寸 |
至叉面长度L1 the distance to fork |
mm |
3554 |
|
总宽B1 overall width |
mm |
1650 |
|
总长L2 overl length |
mm |
5350 |
|
门架闭合高度H1 mast closed height |
mm |
2750 |
|
门架起升高度H4 mast lifting height |
mm |
4295 |
|
至护顶架高度H5 the height to over head guard |
mm |
2640 |
|
最小转弯半径Wa minmum turing radius |
mm |
3100 |
|
前悬距X front overhang |
mm |
665 |
|
直角堆垛通道宽度(托盘1650×1200)Ast
Right angle width |
mm |
4950 |
|
特
性
character |
速度
speed |
行驶速度（空载/满载）walking speed |
km/h |
9.5/7.5 |
|
起升速度（空载/满载）lifting speed |
mm/sec |
95/90 |
|
下降速度（空载/满载）desent speed |
mm/sec |
100/110 |
|
****爬坡度（满载/空载）Maximum climbing speed |
% |
6/10 |
|
****牵引力 Maximum tow capactiy |
N |
28400 |
|
自重(含蓄电池组)weight(with battery) |
kg |
21300 |
|
轮胎
tyre |
前轮 front wheel |
|
2－φ712×406 |
|
后轮 rear wheel |
|
4－φ458×178 |
|
轮距
Tread |
前轮距B3 |
mm |
1244 |
|
后轮距B2 |
mm |
800 |
|
轴距Y wheel base |
mm |
1905 |
|
最小离地间距M1 minimum height |
mm |
115 |
|
驱
动 |
蓄电池 |
V/Ah |
80/1500 |
|
电机
motor |
驱动电机 drive motor |
kW |
AC 23 |
|
油泵电机 pumpt motor |
kW |
2×DC12 |
|
控制器 |
驱动电控 driving electricity control system |
|
ACE5 |
|
空载时前轴承重 unload front axle |
kg |
5291 |
|
满载时前轴承重 load front axle |
kg |
27757 |
|
空载时后轴承重 rear axle |
kg |
16019 |
|
满载时后轴承重real axle |
kg |
7053 |
|
传动比μ transmission proportion |
|
33.0375 |
